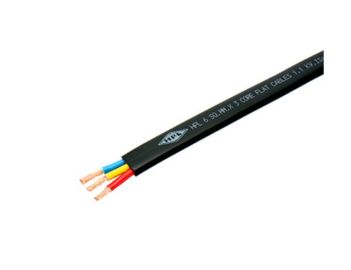

Range : 1.0 to 50.0 Sq. mm three core flat cable.
Specially formulated PVC compound (Type A & ST-1).
Round submersible cable can be specially asked for.
Conforms to IS:694.
Range : 0.5 to 400 Sq.mm in Single Core & Multicore.
Multi strand 100% Pure annealed Electrolytic Grade copper conductor.
FR/FR-LSH insulation Confirming to IS : 694.
Bunching of copper in uniform lay & diameter.
Range : 0.5 to 400 Sq.mm in Single Core & Multicore.
ZHFR insulation as per IS : 694.
Multi strand 100% Pure annealed Electrolytic Grade Copper Conductor.
Bunching of copper in uniform lay & diameter.
Bunching of copper in uniform lay & diameter
High insulation Resistance
Double Insulated with ultra thin layer
Range : 0.5 Sq. mm to 2.5 Sq. mm Conforming BS: 7846 600/1000 Volts.
Shielding: Core/Pair/Triad/Quads with Mica/glass fire barrier tape.
ABC/ATC,Solid/Standard 100% pure annealed Electrolytic grade copper conductor.
Armoured / Unarmoured - GI Round wire / Flat Strip.
Operating Temperature -10�C +90O C.
Fire Tests Bs6387 CWZ, BS 8491, IEC 60331- 2.
