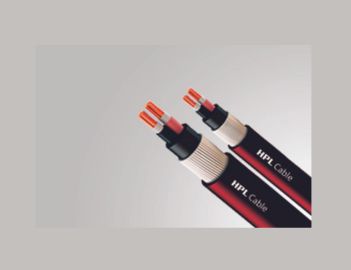

Armoured/Un-Armoured cables.
Stranded/Solid Copper Conductor PVC insulated, overall almylar tape shielded & ATC dran wire.
FR (Fire retardant) grade PVC compound twin parallel.

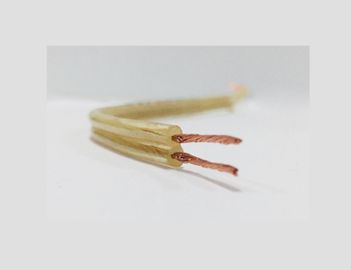

HPL Speaker Wire consists of two or more electrical conductors individually insulated by plastic (such as PVC, PE or Teflon) The two wires are electrically identical, but are marked to identify the correct audio signal polarity.
Most commonly, speaker wire comes in the form of zip cord.
Range : 0.5 Sq. mm to 2.5 Sq. mm Conforming BS: 7846 600/1000 Volts.
Shielding: Core/Pair/Triad/Quads with Mica/glass fire barrier tape.
ABC/ATC,Solid/Standard 100% pure annealed Electrolytic grade copper conductor.
Armoured / Unarmoured - GI Round wire / Flat Strip.
Operating Temperature -10˚C +90O C.
Fire Tests Bs6387 CWZ, BS 8491, IEC 60331- 2.
Range : Single core 2.5, 4, 6, 10, 16 & 25 Sq. mm.
Flexible tinned annealed electrolytic grade copper conductor.
Latest requirement for PV system as per EN 50618
Range : 0.5 to 1.5 Sq. mm. for upto 12 core.
Flexible bare annealed electrolytic grade copper.
PVC insulated & PVC sheathed.
Specially formulated PVC.
Range : 3+1 CCTV and 4+1 CCTV Cable.
Coaxial Cable consists of solid annealed bare copper conductor.
Low loss characteristics reduced attenuation of the video signal.
